Xprog-M programmer is updated to Xprog box v5.76!! So, what’s new in Xprog box 5.76 programmer & what’s the differences among xprog box (xprog m) v5.76 v5.70 v5.60 v5.5.
What is Similarities of Xprog-M programmers v5.76 v5.70 v5.60 v5.5?
Xprog m programmer v5.76 v5.70 v5.60 v5.5 all share the authorization as below:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 11/4/2014
What is Differences bettween Xprog-M box v5.76 v5.70 v5.60 v5.5
Xprog box 5.76 adds new authorization:
(More fucntions are coming soon)
MCU/MPU->infineon{XC16x}->SAK-XC164CS-16F
MCU/MPU->FresscaleHC08-Updated->MC68HCx08AS/AZ32_CONFIG
MCU/MPU->FresscaleHC08-Updated->MC68HCx08AS/AZ32_CONFIG
MCU/MPU->Fresscale9S08->MC9S08AW8_FLASH
MCU/MPU->Fresscale9S08->MC9S08AW8_FLASH
MCU/MPU->Fresscale9S12XD->MC9S12XDx128_EFPROM
MCU/MPU->Fresscale9S12XD->MC9S12XDx128-EFPROM-secured
MCU/MPU->Fresscale9S12XF->MC9S12XF128_EEE
MCU/MPU->Fresscale9S12XF->MC9S12XF128_EEE
MCU/MPU->Fresscale9S12XHY->MC9S12XHY128_D-FLASH
MCU/MPU->FresscaleMPC55xx->MPC5515_Code-Flash
MCU/MPU->FresscaleMPC560x->MPC5602B/C_Code-Flash
MCU/MPU->FresscaleMPC560x->MPC5602B/C_Code-Flash
Immobilizers->Yamaxa->T-MAX_TYPE_I_9S12T64
Other ECU ->Chrysler-DodgeJeep->BCM-GRAND_CHEROKEE_WK_2014_Flash
Other ECU ->GM ECU->SAF-XC164CS-16F
Other ECU ->HONDA Bikes->CB650F 2015_Code_Flash
Other ECU ->Renault ClioOther ->EPS_ST10F269
Other ECU ->Renault Modus ->ECU_SAK-XC164CS-32F
Airbag(XC2xxx)->FR3T-14B321-AF(XC2336A-72)->FR3T-14B321-AFflash0
Airbag(SPC560xx)/MPC560x)->Honda_CR-V(SPC560P50LS)->Code_Flash
XPROG v5.70 adds new MCU/MPU:
MCU/MPU->infineon{XC16x}->SAK-XC164CS-16F
MCU/MPU->FresscaleHC08-Updated->MC68HCx08AS/AZ32_CONFIG
MCU/MPU->FresscaleHC08-Updated->MC68HCx08AS/AZ32_CONFIG
MCU/MPU->Fresscale9S08->MC9S08AW8_FLASH
MCU/MPU->Fresscale9S08->MC9S08AW8_FLASH
MCU/MPU->Fresscale9S12XD->MC9S12XDx128_EFPROM
MCU/MPU->Fresscale9S12XD->MC9S12XDx128-EFPROM-secured
MCU/MPU->Fresscale9S12XF->MC9S12XF128_EEE
MCU/MPU->Fresscale9S12XF->MC9S12XF128_EEE
MCU/MPU->Fresscale9S12XHY->MC9S12XHY128_D-FLASH
MCU/MPU->FresscaleMPC55xx->MPC5515_Code-Flash
MCU/MPU->FresscaleMPC560x->MPC5602B/C_Code-Flash
MCU/MPU->FresscaleMPC560x->MPC5602B/C_Code-Flash
Immobilizers->Yamaxa->T-MAX_TYPE_I_9S12T64
Other ECU ->Chrysler-DodgeJeep->BCM-GRAND_CHEROKEE_WK_2014_Flash
Other ECU ->GM ECU->SAF-XC164CS-16F
Other ECU ->HONDA Bikes->CB650F 2015_Code_Flash
Other ECU ->Renault ClioOther ->EPS_ST10F269
Other ECU ->Renault Modus ->ECU_SAK-XC164CS-32F
Airbag(XC2xxx)->FR3T-14B321-AF(XC2336A-72)->FR3T-14B321-AFflash0
Airbag(SPC560xx)/MPC560x)->Honda_CR-V(SPC560P50LS)->Code_Flash
XPROG-M v5.60 ECU Box adds new EEPROM / MCU/ECU:
9S12XEP768 P-FLASH, D-FLASH, EEPROM (AUTH-0024-2)
9S12XET256 SECURITY P-FLASH, D-FLASH, EEPROM (AUTH-0024-3)
9S12XEQ384 SECURITY P-FLASH, D-FLASH, EEPROM (AUTH-0024-3)
9S12XEP768 SECURITY P-FLASH, D-FLASH, EEPROM (AUTH-0024-3)
9S12XEP100 SECURITY P-FLASH, D-FLASH, EEPROM (AUTH-0024-3)
XC2361A-56 FLASH3 (AUTH-0023-2)
MC9S12XDP512 0M23S
MAC7241 write bug fixed (AUTH-0023-1)….
Xprog-m V5.5 supports IC device list:
MCU/MPU SPC560 serial
SPC560P44Lx_Code_Flash
SPC560P44Lx_Code_Flash_Test
SPC560P44Lx_Code_Flash_Shadow
SPC560P44Lx_Data_Flash
SPC560P44Lx_Code_Flash_Block
SPC560P50Lx_Code_Flash
SPC560P50Lx_Code_Flash_Test
SPC560P50Lx_Code_Flash_Shadow
SPC560P50Lx_Code_Flash
SPC560P50Lx_Code_Flash_Block
Freescale MPC5xx
MPC
MPC->Configuration-A
MPC->Configuration-B
MPC->External Flash
MPC->External EEPROM M95xxx
MCU/MPU
Freescale 9s12XHY
MC9S12XHY256 D-Flash
MC9S12XHY256 P-Flash
Freescale (Mac7xxx)
MAC7111VAG50_Flash
MAC7111VAG50_Data_Flash
MAC7112VAG50_Flash
MAC7112VAG50_Data_Flash
MAC7116VAG50_Flash
MAC7116VAG50_Data_Flash
MAC7131MVF_Flash
MAC7131MVF_Data_Flash
MAC7241VAF64_Flash
MAC7241VAF64_Shadow_Flash
MAC7242VAF64_Flash
Freescale 9S12XS-secured
MC9S12XS128_D-Flash-Secured
MC9S12XS128_P-Flash-Secured
This is about Xprog box v5.7.6
Xprog box 5.76 reviews.

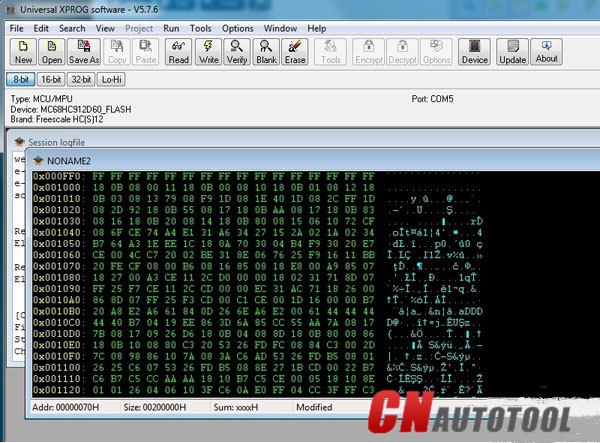

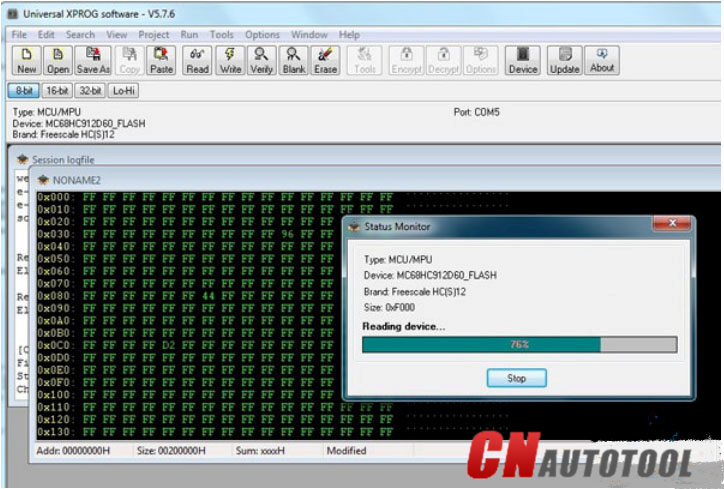

Tested on HC912D60 the fucntion is okay..
For over an hour Xprog was connected to a PC, internet active, I have no problem with the certificate.

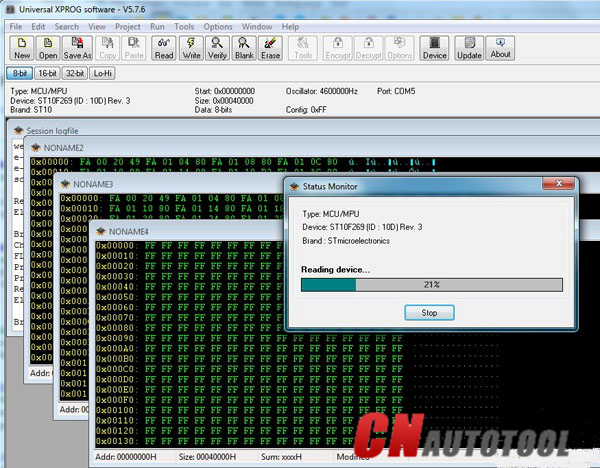

Today tested on ST10F269 (ZBR2 MAN), multiple reading.
Internet access was off.
After compared all version of Xpro-m,the customers know Xpro-M very well now,so the customers can choose the Xpro-m according to thire own requirment.
